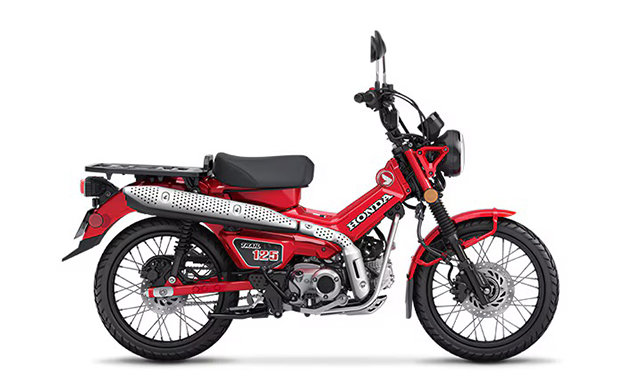

2025 Honda Trail 125 at Great Lakes Honda

Standard

• Engine Type : Air-cooled single-cylinder
• Displacement : 124 cc
• Bore & Stroke : 50.0 mm x 63.1 mm
• Compression Ratio : 10.0:1
• Valve Train : SOHC; two valves per cylinder
• Fuel Delivery : PGM-FI
• Transmission : Four-speed semi-automatic
• Final Drive : 428 Chain; 14T/38T

Standard

• Tires : Front: 80/90-17, Rear: 80/90-17
• Brakes : Front: Single 220 mm disc, Rear: Single 190 mm disc
• ABS : Front wheel ABS
• Seat Height : 800 mm (31.5 in.)
• Fuel Capacity : 5.3 litres (1.1 liter reserve)
• Warranty : 1 year, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
• Wheelbase : 1258 mm (49.5 in)
• Curb Weight : 116kg (256 lb) (Includes all standard equipment, required fluids and full tank of fuel—ready to ride)

Standard

• Front Suspension : 27 mm telescopic fork; 99 mm (3.9 in) travel
• Rear Suspension : Twin shock; 86 mm (3.4 in) travel
